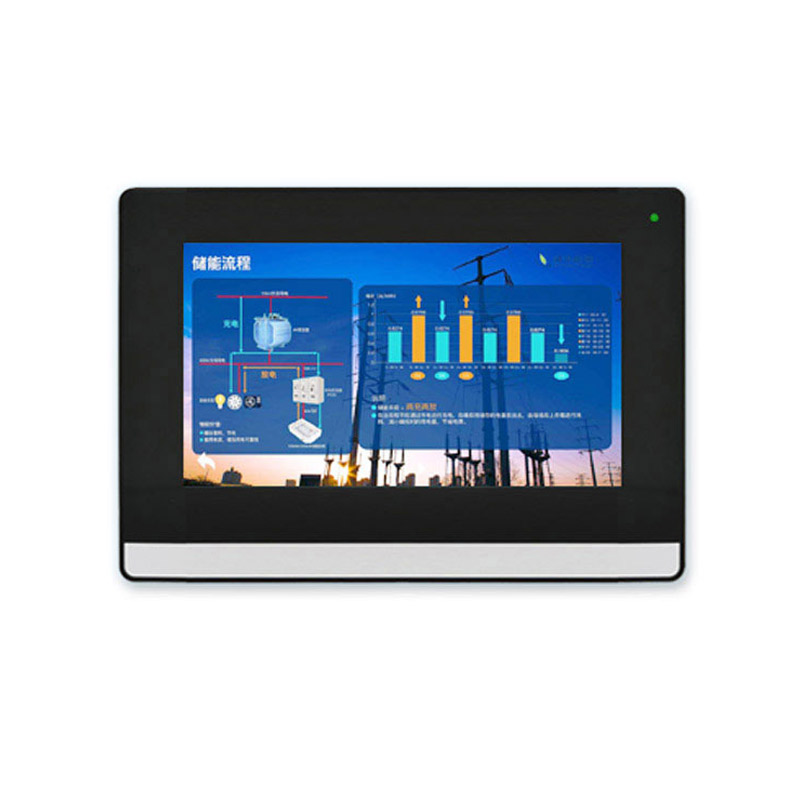

7 inch Android industrial panel pc automation industry LCD Monitor

Using Samsung’s 4418 industrial-grade CPU chip, the performance is stable and powerful, the appearance is a more fashionable and beautiful design, the interface is rich, the expansion and the optional function are more, it is the leader of the second generation of micro-embedded Android products, in 2018 Launched, this machine is mainly aimed at smart meeting rooms, smart buildings, medical equipment, educational equipment, robots, smart electronic scales, on-board equipment, environmental protection detectors, etc. It is the most widely used machine in the micro-embedded product industry, covering almost all Applied to the industry of industrial tablet computers.

Products Details

High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability High reliability, no handling errors are allowed, and strict tests are passed With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time Communication interface suitable for industrial use, easy to expand Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance Simple and easy secondary development, multi-platform, multi-language support, providing routines1.Parameters
Product model WAR-070C-SS10
Basic parameters ● CPU:Quad-core Cortex®-A9 architecture ; Frequency 1.4GHz ● Memory:1GB DDR3 ● Flash:8GB NandFlash
Display screen ● Size:7 inch ● Resolution:1024×600 ● Wide-temperature type,16000k colors or 24-bit true colors ● LED backlight:lifetime > 25000 hours
Touch screen Capacitance/Resistance touch screen
Hardware interface ● 1 channel DB9 interface (COM1) (Isolation as optional). ● 1 channel 3-wire RS-232 serial port (COM2) (Isolation as optional). ● 1 channel RS-485 interface (COM3) (Isolation as optional). ● 1 channel isolated CAN bus interface (optional). ● 1 channel external WIFI antenna interface (optional). ● 1 channel USB Device interface,support ADB connect to PC to exchange date and debug application . ● 2 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc. ● 1 channel 100M Ethernet interface. ● 1 channel SD/MMC slot,support TF card. ● 1 channel audio output interface. ● 1 channel built-in speaker interface (optional). ● 1 channel external speaker interface, power 8 Ω1.7 W or 4 Ω 3 W (optional). ● 1 channel 4G communication card interface . ● 1 channel DC 12V~24V power input . ● Built-in 4G Module ,WIFI , Bluetooth  (optional).
Attention When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS Android 4.4.2 /Android 5.1
Defend degree IP65 (front panel)
Working environment ● power:DC 12V-24V (24V as recommendation) ● working temperature:-10~60℃ ● storage temperature:-20~80℃ ● working humidity:10~90%RH
Size ● shell structure:plastic ● panel size:202.1×144.1 (mm) ● trepanning size:192.1×134.1 (mm)
Application area ● industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application. ● Support CAN bus network deployment.
Software support ● Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc . ● Easy change the user-defined splash screen.
2. Interface definition3. Exterior size Exterior size:202.1×144.1×34(mm)     Trepanning size:192.1×134.1(mm)
1. External speaker interface  R+ 2. External speaker interface  R-
3. External speaker interface  L+ 4. External speaker interface  L-
5. GND 6. CANL
7. CANH 8. COM3-485B
9. COM3-485A 10. GND
11. COM2-RX of RS-232 12. COM2-TX of RS-232
2.1 RS-232 interface 2 channel RS-232 serial port,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 , COM2. 2.2 RS-485 interface The corresponding port in Android system is COM3. 2.3 CAN Bus interface The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance inside , pls specify once in need. 2.4 Power interface
