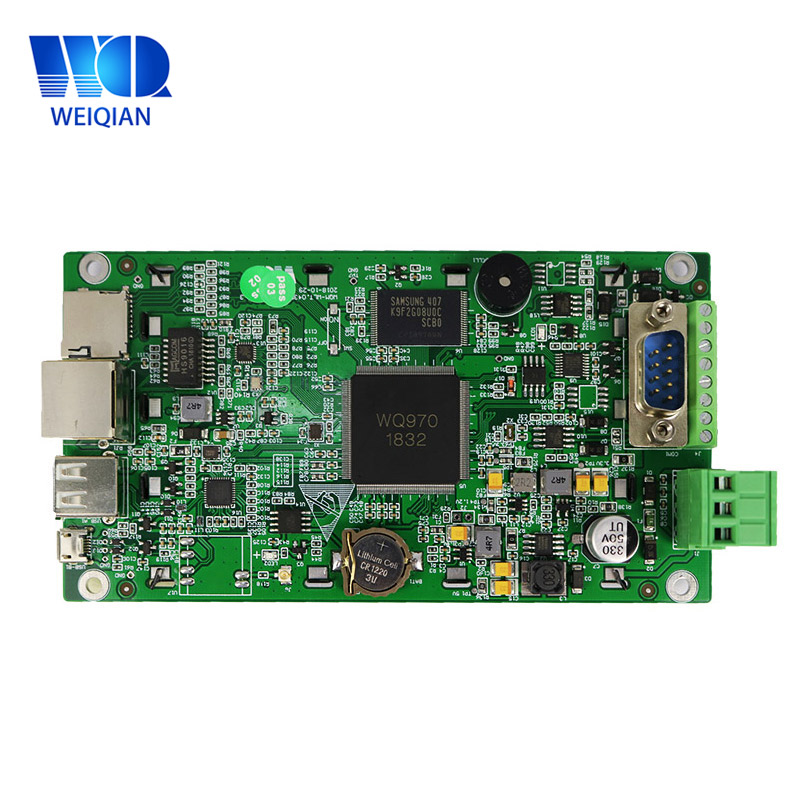

4.3 inch WinCE Industrial Panel PC with Caseless Module

Products Details

Product model WLT-043R-NN00
Basic parameters CPU:ARM9 architecture ; Frequency 300MHZMemory: 64MB DDR2Flash:128MB NandFlash
Display screen Size:4.3 inchResolution:480×272Wide-temperature type,64K colors or 260K colorsLED backlight:lifetime > 25000 hours
Touch screen 4-wire resistance touch screen(driver inside)
Hardware interface 1 channel DB9 interface(COM1).1 channel 3-wire RS-232 serial port(COM2)2 channel RS-485 interface(COM3、COM7),COM3 is a multiplexing of CAN , COM3 as standard .1 channel USB device interface,support ActiveSync connect to PC to exchange data and debug application.1 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel TF slot, support SD/TF card.1 channel CAN interface(driver inside)(optional)1 channel DC12V~24V Power Input interface .
Attention When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS Windows CE 6.0
Defend degree  /
Working Environment Power: DC 12V~24V,600mAWorking temperature:-10~60℃Storage temperature:-20~80℃working humidity:10~90%RH
Size No shellpower:DC12~24VSize :144x77.7x25.3 (mm)trepanning size:108x69.5  (mm)
Application area industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.
Software support Flash FAT file system protection function.IDE: Visual Studio 2005/2008.net(.net 2.0 Compact), EVC++, Labview development.Easy change the user-defined splash screen.Support display screen rotation (degree: 0/90/180/270)
1.  COM7-485B 2. COM7-485A
3.   GND 4. COM2-RX of RS-232
5. COM2-TX of RS-232 6 GND
7 COM3-485B  (CANL)  COM3-485A  (CANH)

2.1 RS-232 interface

2 channel serial port, support the highest-level baudrate115200bps. The corresponding interface in Linux system is COM1 ~ COM2.

 RS-485 interface

The corresponding port in Linux system is COM3COM7.

2.3 CAN Bus interface

The function of Can-bus interface is optional . Also, without terminal resistance inside ,pls specify once in need.

2.4 Power interface

Exterior size:144x77.5x25.3(mm)        Trepanning size:108x69.5  (mm)
