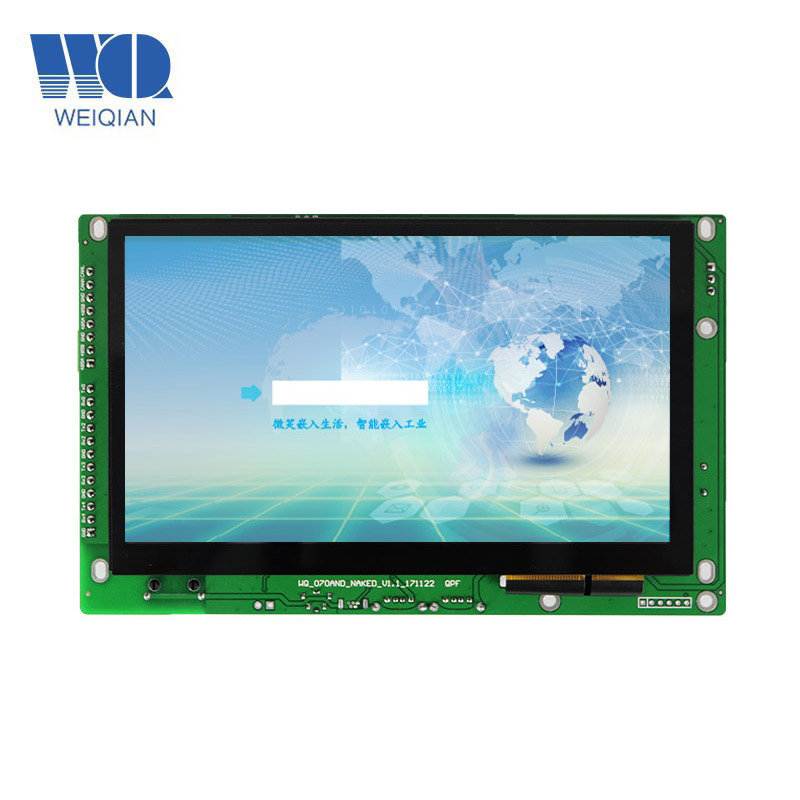

7 inch Linux industrial Panel PC with Caseless Module

Products Details

Product model WLX-070C(R)-SN10
Basic parameters CPUQuad-core Cortex®-A9 ;  Frequency 1.4GHzMemory1GB DDR3Flash8GB
Display screen Size7 inchResolution1024×600Wide-temperature type16000k colors or 24 true colorsLED backlightlifetime > 25000 hours
Touch screen Capacitance/Resistance touch screen
Hardware interface 4 channel 3-wire RS-232 serial port (COM1,COM2,COM3,COM4)(Isolation as optional)2 channel RS-485COM1,COM2multiplexing with RS-232 (COM1,COM2) . (Isolation as optional)1 channel isolated CAN busoptional.1 channel USB device interface, support ADB connect to PC to exchange data and debug application.2 channel USB Host interfacesupport usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel SD/MMC slot, support MMC/mini SD card.1 channel 3.5mm earphone output interface.1 channel external speaker interface (power amplifier 8Ω2w)optional ).1 channel 2EDG3.5 DC12V~24V Power interface .( Optional : WIFI / 4G / WIFI +Bluetooth ).
Attention When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS Linux
Defend degree /
Working environment powerDC 12V-24V 24V as recommendation)working temperature-10~60℃    storage temperature-20~80℃working humidity1090%RH
Size No shellpowerDC 12V-24V 24V as recommendation)size188×117×41 mm
Application area industrial controldetection deviceinstruments and meterssecurity monitoringmedical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment.
Software support Support Eclipse, QT Creator, Arm linux gcc/g++ compiler, shell programming, STL library, Python2.7 development, support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen.
Exterior size:188x117x41(mm)

asdzxcxzc1 asdzxcxzc2 asdzxcxzc3 asdzxcxzc4 asdzxcxzc5 asdzxcxzc6 asdzxcxzc7 asdzxcxzc8 asdzxcxzc9 asdzxcxzc10 asdzxcxzc11

1.  RS-232  (COM1-TX0 ) 2. RS-232  (COM1-RX0 )
3. GND 4. RS-232  (COM2-TX2 )
5. RS-232  (COM2-RX2 ) 6. GND
7. RS-232  (COM3-TX3 ) 8. RS-232  (COM3-RX3)
9.   GND 10.  RS-232  (COM4-TX4 )
11.  RS-232  (COM4-RX4 ) 12.  GND
 GND  COM1-485B
 COM1-485A  GND
 COM2-485B  COM2-485A

2.1 RS-232 interface

4 channel RS-232 serial portsupport the highest-level baudrate 115200bps. The corresponding interface in Linux system is COM1 ~ COM4.

2.2 RS-485 interface

The corresponding port in Linux system is COM1COM2.

2.3 CAN Bus interface

The function of Can-bus interface is optional.

2.4 Power interface
