7 Inch Linux Industrial Panel PC

Products Details

Product model WLX-070R-NP00
Basic parameters CPU: ARM9 architecture,frequency 300MHZMemory: 64MB DDR2Flash:128MB NandFlash
Display screen Size:7 inchResolution:800×480Wide-temperature type,64K colors or 260K colorsLED backlight:lifetime > 25000 hours
Touch screen 4-wire resistance touch screen(driver inside)
Hardware interface 4 channel 3-wire RS-232 serial port(COM1,COM2,COM5,COM8)3 channel RS-485 serial port(COM3、COM7、COM9),COM3 is a multiplexing of CAN,and COM3 as standard .1 channel CAN bus , multiplex as COM3. (optional)1 channel WIFI module inside.(optional)1 channel USB Device interface.2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel SD/MMC slot.1 channel 3.5mm audio output interface.1 channel DC12V~24V,industrial power solution,higher reliability.
Attention When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS Linux
Defend degree IP65 (front panel)
Working environment power:DC 12V~24V (24V as recommendation),600mAworking temperature:-10~60℃    storage temperature:-20~80℃working humidity:10~90%RH
Size shell structure:plasticpanel size:206.00×142.00 (mm)trepanning size:195.60×131.60 (mm)
Application area industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment.
Software support Flash power-down protection function.Support Eclipse, QT Creator, Arm linux gcc/g++ compiler, shell programming, STL library, Python2.7 development, support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen.Support display screen rotation (degree: 0/90/180/270)

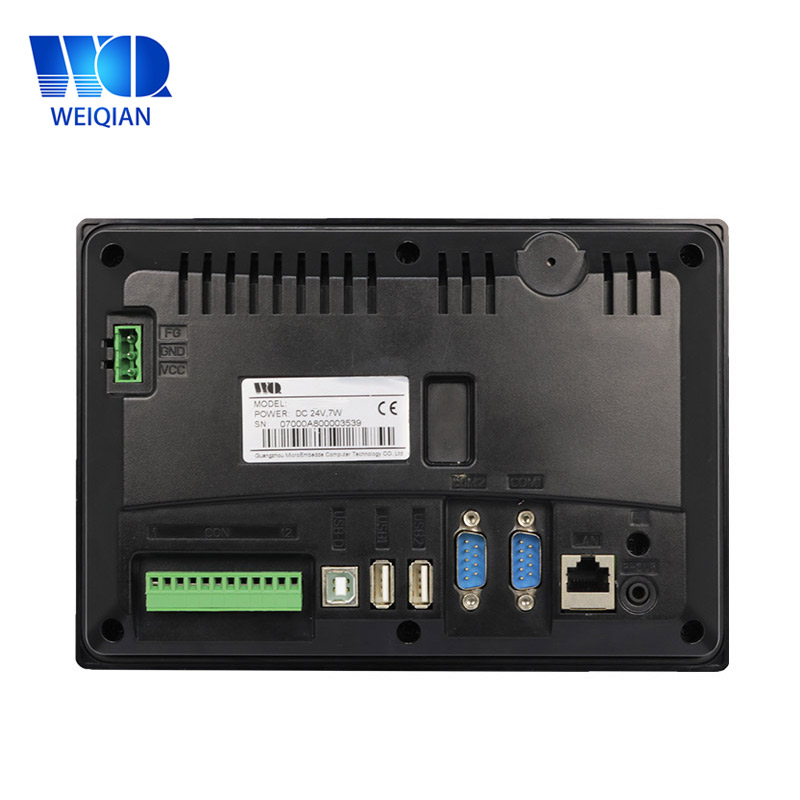

1. COM3-485B (CANL) 2. COM3-485A (CANH)
3. GND 4. COM8-RX of RS-232
5. COM8-TX of RS-232 6. COM5-RX of RS-232
7. COM5-TX of RS-232 8. COM9-485B
9. COM9-485A 10. GND
11. COM7-485B 12. COM7-485A

2.1 RS-232 interface

4 channel serial port, support the highest-level baudrate115200bps. The corresponding interface in Linux system is COM1COM2COM5COM8 .

2.2 RS-485 interface

The corresponding port in Linux system is COM3COM7COM9.  And COM3 is a multiplexing of CAN.  120 ohm(Ω) terminal resistance will be needed additionally for a bus network deployment.

2.3 CAN Bus interface

The function of Can-bus interface is optional. Also, CAN is a multiplexing of COM3 ,120 ohm(Ω) terminal resistance will be needed additionally for a bus network deployment.

2.4 Power interface

Exterior size:206×142(mm)          Trepanning size:195.6×131.6(mm)
