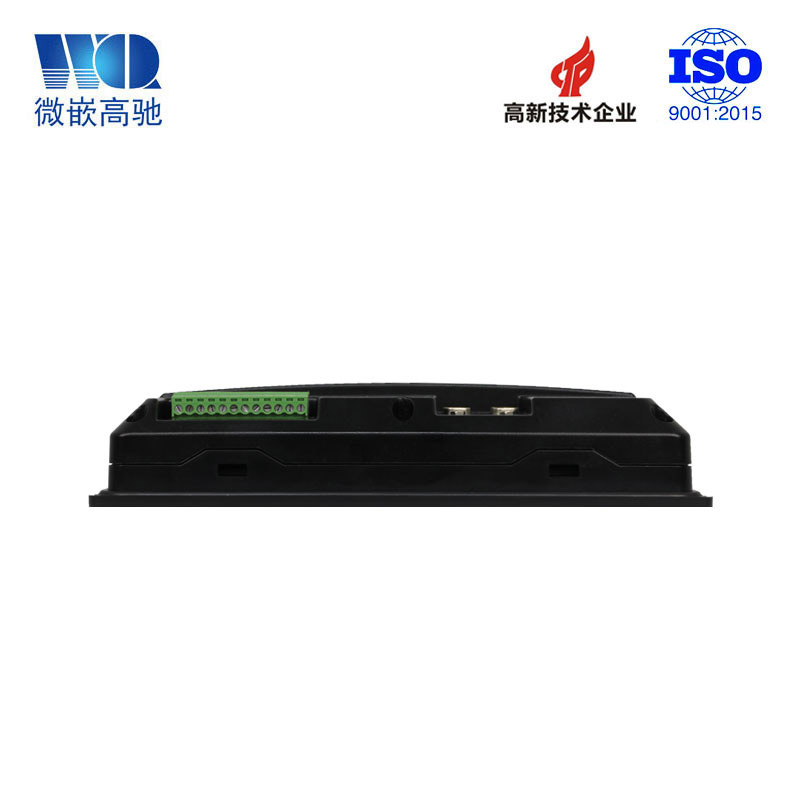

7 Inch Android industrial panel pc

Using Allwinner A40I industrial-grade CPU chip, stable performance, high and low temperature resistance, very cost-effective, the appearance is a classic black plastic shell, promises a 10-year supply period, the product will be listed in 2020, and it is widely used in similar industrial scenes.

Products Details

High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability. High reliability, no handling errors are allowed, and strict tests are passed. With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time. Communication interface suitable for industrial use, easy to expand. Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance. Simple and easy secondary development, multi-platform, multi-language support, providing routines.1.Parameters
Product model WAR-070C (R) -IP10
Basic parameters ● CPU: Quad-core Cortex®-A7 architecture ;  Frequency 1.2GHz ● Memory:1GB DDR3 ● Flash:8GB NandFlash
Display screen ● Size:7 inch ● Resolution:1024×600 ● Wide-temperature type,16000k colors or 24 true colors ● LED backlight:lifetime > 25000 hours
Touch screen Capacitance touch screen
Hardware interface ● 4 channel 3-wire RS-232 serial port (COM1,COM2,COM5,COM6) ● 2 channel RS-485 (COM3、COM4) ● 1 channel CAN bus (optional). ● 1 channel USB device interface, support ADB connect to PC to exchange data and debug application. ● 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc. ● 1 channel 1000M Ethernet interface. ● 1 channel SD/MMC slot,support SD/MMC card . ● 1 channel WIFI module (optional). ●  1 channel Bluetooth module (optional). ●  1 channel DC12V~24V Power Input interface .
Attention When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS Android 7.1.1
Defend degree IP65 (front panel)
Working environment ● power:DC 12V-24V (24V as recommendation) ● working Temperature:-10~55℃ ● storage temperature:-20~85℃ ● working humidity:10~90%RH
Size ● shell structure:plastic ● panel size:206.00×142.00 (mm) ● trepanning size:195.6×131.6 (mm)
Application area ● industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application. ● Support CAN bus network deployment.
Software support ● Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc . ● Easy change the user-defined splash screen.
2. Interface definition3. Exterior size Exterior size:206×142(mm)            Trepanning size:195.6×131.6(mm)2.1  RS-232 interface 4 channels,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 , COM2, COM5 , COM6. 2.2  RS-485 interface The corresponding port in Android system is COM3, COM4. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need. 2.3  CAN Bus interface There is a CAN-Bus interface and a CAN-Bus driver. The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need. 2.4  Power interface
