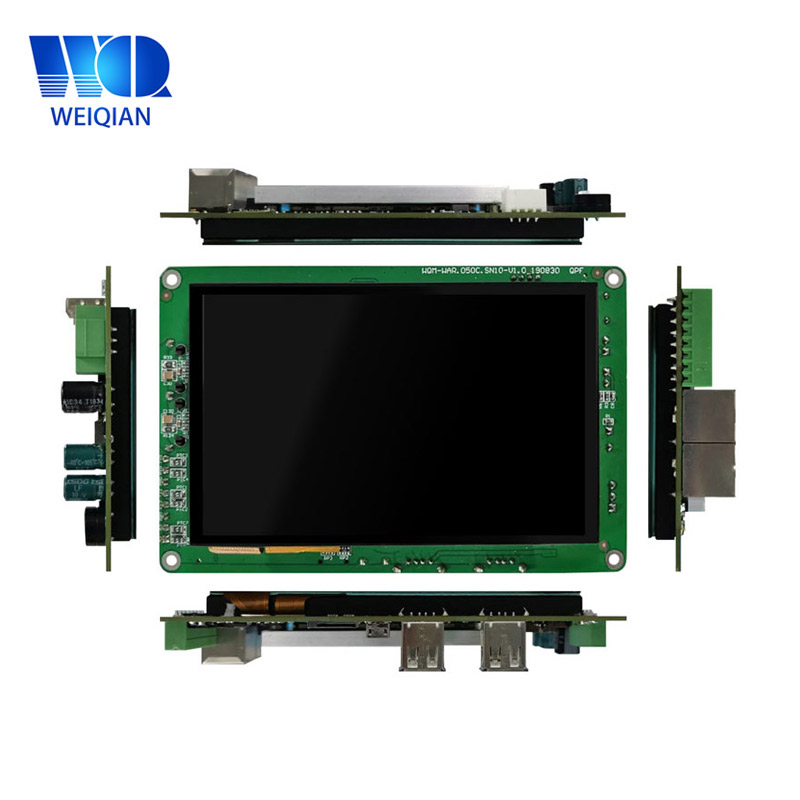

5 inch Android Panel PC with Shell-less Module

Products Details

Product model WAR-050C-SN10
Basic parameters CPU:Quad-core Cortex®-A9 architecture,frequency 1.4GHzMemory:1GB DDR3Flash:8GB NandFlash
Display screen Size:5 inchResolution:800×480  Wide-temperature type,16000k colors or 24 true colorsLED backlight:lifetime > 25000 hours
Touch screen Capacitance touch screen
Hardware interface 2 channel 3-wire RS-232 serial port(COM1,COM2)(Adding 1 channel RS-232-COM4(TTL) as optional).1 channel RS-485 interface(COM3).1 channel external WIFI antenna interface (optional).1 channel USB Device interface,support ADB connect to PC to exchange date and debug application .2 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc.2 channel 100M Ethernet interface.1 channel SD/MMC slot,support TF card.1 channel DC 12V~24V power.
Attention When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS Android 4.4.2
Defend degree /
Working environment power:DC 12V-24V (24V as recommendation)working temperature:-10~50℃    storage temperature:-20~80℃working humidity:10~90%RH
Size No ShellSize:145.4×94×26 (mm)
Application area industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment.
Software support Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen.
1 RS-232  (COM1-TX) 2 RS-232 (COM1-RX)
3 GND 4 RS-232 (COM2-TX)
5 RS-232 (COM2-RX) 6 GND
7 RS-485 (COM3-485A) 8 RS-485 (COM3-485B)
1.1、RS-232 interface 2 channel RS-232 serial portsupport the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 , COM2.

1.2、RS-485 interface

The corresponding port in Android system is COM3 . Power interfaceExterior size:145.4×94×26(mm)  Trepanning size:122.8×78 (mm)
